Hydrological Instruments

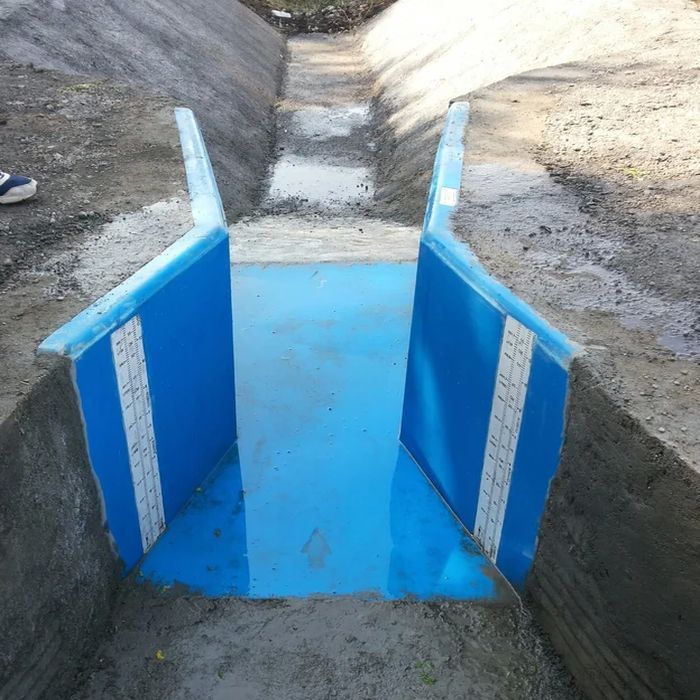

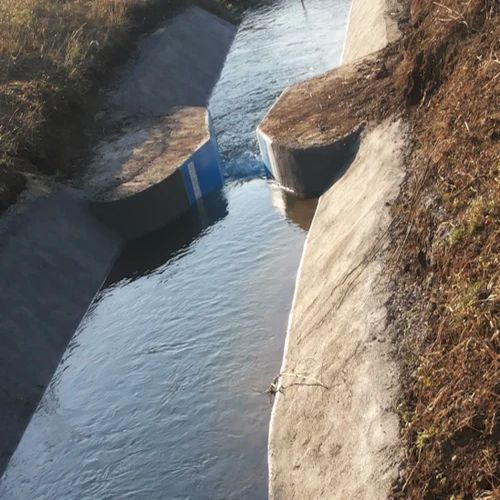

We are engaged in manufacturing and supply of FRP Flumes that are used in water FRP Flumes are designed and developed to perform according to BIS defined guidelines. The flumes are of superior quality and they deliver accurate results consistently. The FRP Flumes we make are offered with the guaranteed shelf life of 25 years. Cut Throat Flume has discharge capacity up to 80 cusecs. These are manufactured using qualitative material.

Features :

• Dimensionally accurate
• Better outdoor weathering stability
• Prefabricated, calibrated, engraved gauge marking
• Accurate flow measurements

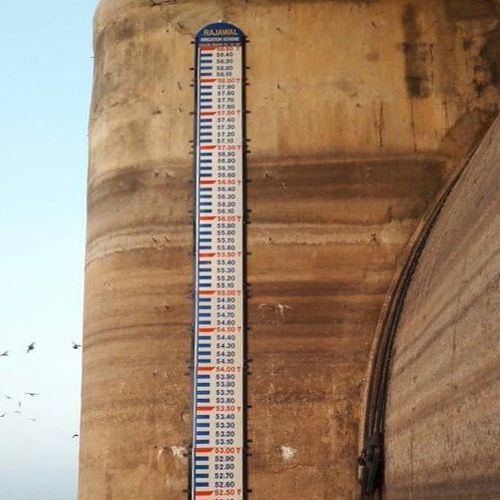

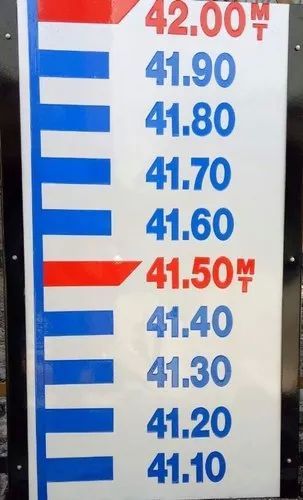

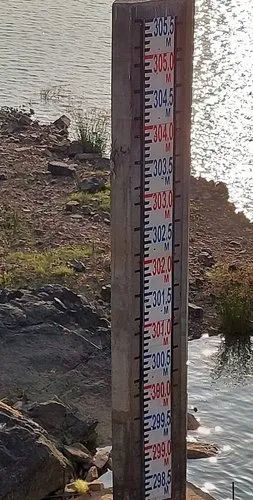

We manufacture FRP Gauge Plate and Gauge Plate with Aluminum Composite Panel sheet that have exterior coated with Kynar 500 (Min 70%) and PVDF coating. These plates are easy to install and can be fixed with nails or fasteners. Our gauge plates are manufactured as per the quality standards defined by BIS and our priority is to offer best quality products at competent prices to all our customers.

Features:

• Fiberglass Reinforced Plastic (FRP) sandwich with MS frame.
• Aluminum sheet with the exterior coated with Kynar 500 (Min 70%) PVDF coating
• Computerized gauge marking with reflow reflective radium pasting
• Easy for installation. Can be fixed with nails or fasteners
• Marking in true scale is available inclined surface of canal

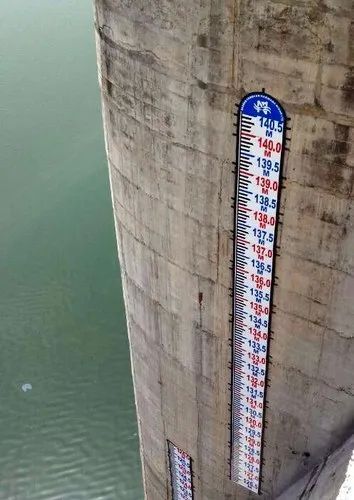

• Very useful for level measurement in Dams, Rivers, Reservoir Tanks, M I Tanks & Canals

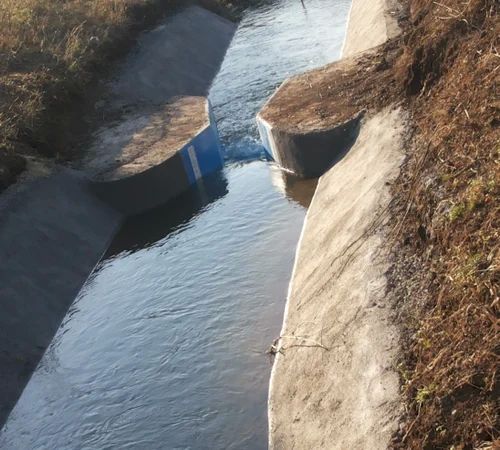

We Are Leading Supplier of Parshall Flume. There are many types of Cut Throat and Parshall Flumes in use as a convention made of  Steel, Masonry, Concrete or other composite material like F.R.P., But due to adhered advantages of FRP flumes over others on dimensional accuracy, very low Manning’s coefficient, high weathering resistance, easy handling, and no resale value it has replaced all conventional ones

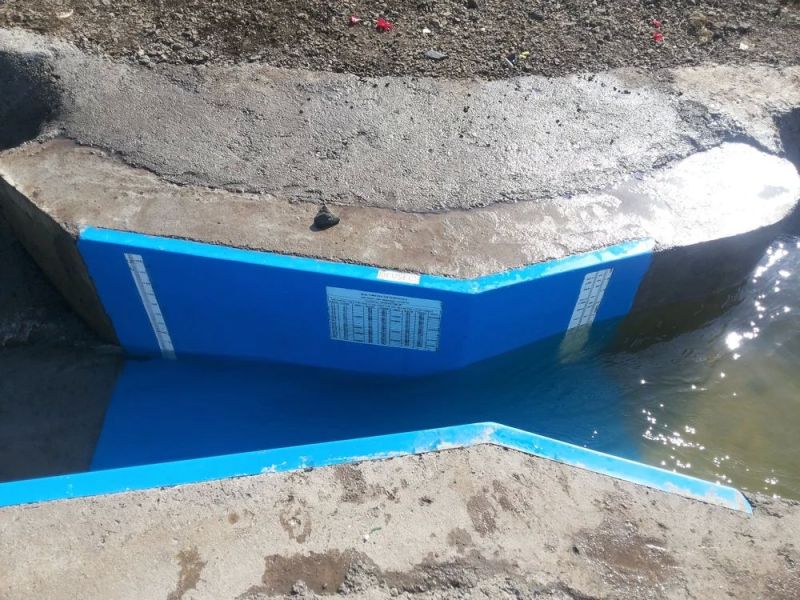

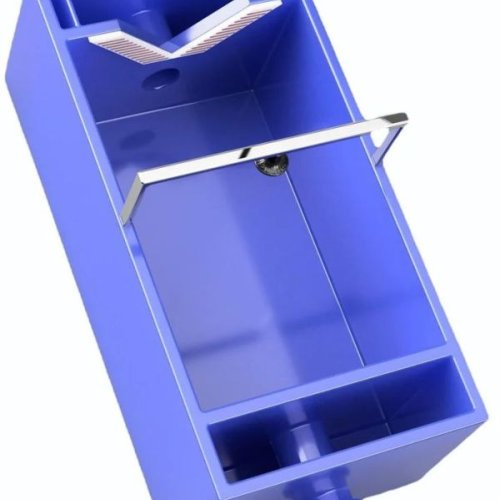

We are one of India’s well known manufacturers and suppliers of FRP V Notch. They are used to measure small discharge of seepage from drains and gallery of masonry dam. The V-Notch can measure discharge from 1 Lit / sec to 120 Lit / sec. maximum. V-Notches are superior are more accurate in measuring low discharges in comparison to flumes because head over the crest is large and thus flow remains unaffected by surface tension and viscosity. Though V -Notch has its limitations for using in field channel yet it is suitable for measurement of seepages from dam.

Features :

• H/p should be limited from 0.2 to 2
• P/B should be less than 0.1 to 1
• B/h max should be less than 3
• H should not be less than 6 cm.
• Straight reach more than 20 times h max
• Gauge marking should be at 4 to 5h max
• The nappe should be fully ventilated
• P should be nearly 10 cm

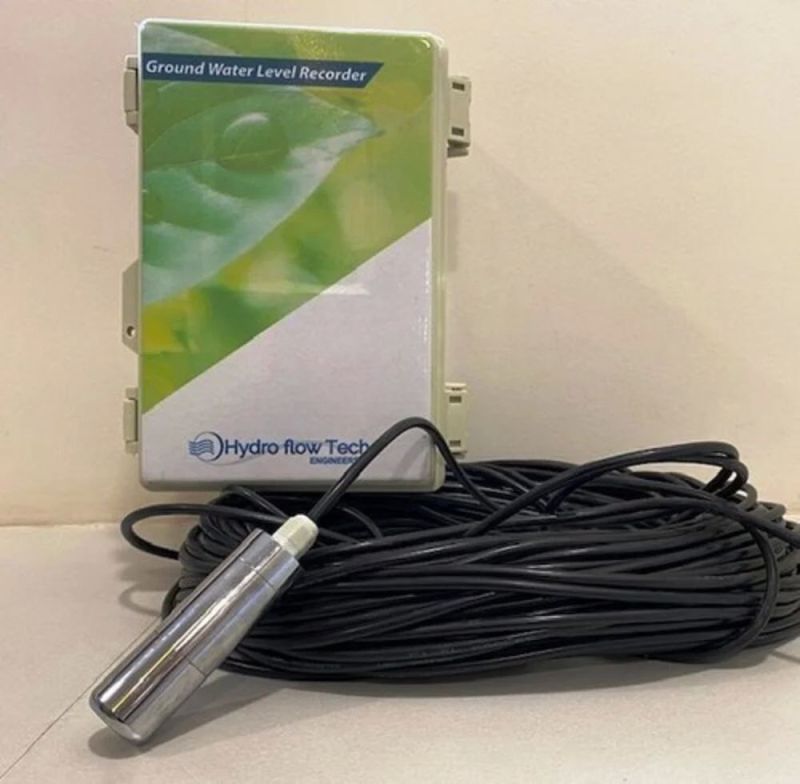

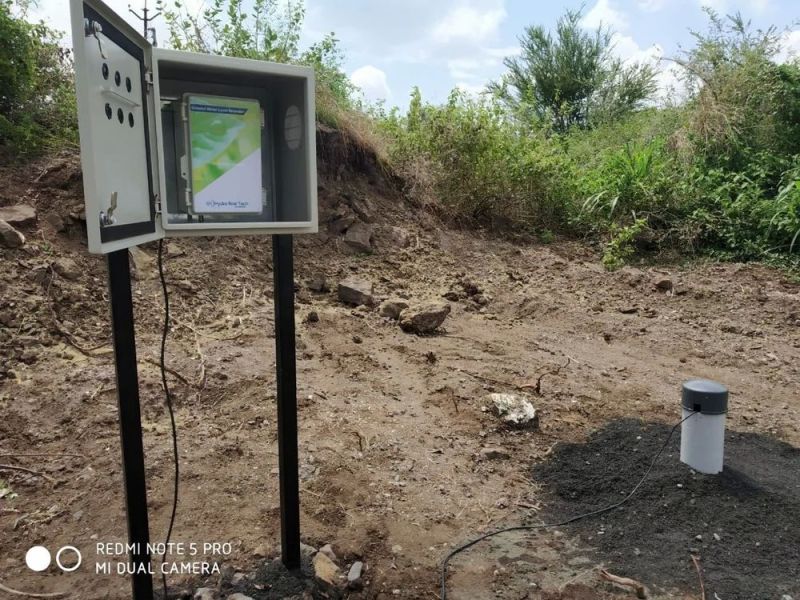

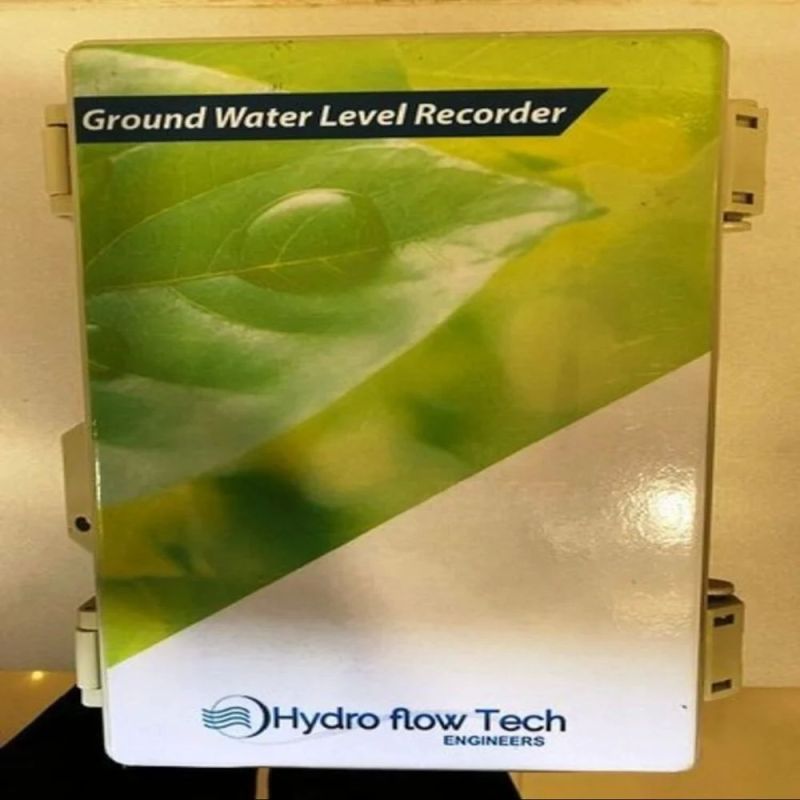

Features :

• Data recorded system available along with 50 m cable
• Imported pressure transducer (sensor)with capability of measuring till 160 meters’ depth.
• Factory-calibrated sensor.
• Facility for Wall/Pipe mounting.
• IP 65 grade rated enclosure.
• Durable and rugged design
• Including Telemetry for online data transfer

Specifications :

• Accuracy: 0.25 % F.S
• Compensated temperature: -200 C to +850 C.
• Operating temperature: -400 C to +1250 C
• Current consumption: 5mA
• Wetted Material: 17-4PH or 316L
• Stainless steel port, 316L stainless steel snubber
• Vibration ±20g, MIL-STD-810C
• Dielectric strength: 2mA  500VAC, 1min
• Display: 16×2 LCD display
• Enclosure: IP65
• Data Output: Microsoft Excel format
• Clock: Real time internal clock
• Input Power: 220V 50Hz AC
• Power Adapter output: 12V, 1A DC
• Lithium ion battery Pack 11.1 V 4.4Ah is provided!

Features :

• Fiberglass reinforced plastic (FRP) Flumes for accurate measurement of flow in open channels
• 1 to 80 cusecs flow measuring capacity

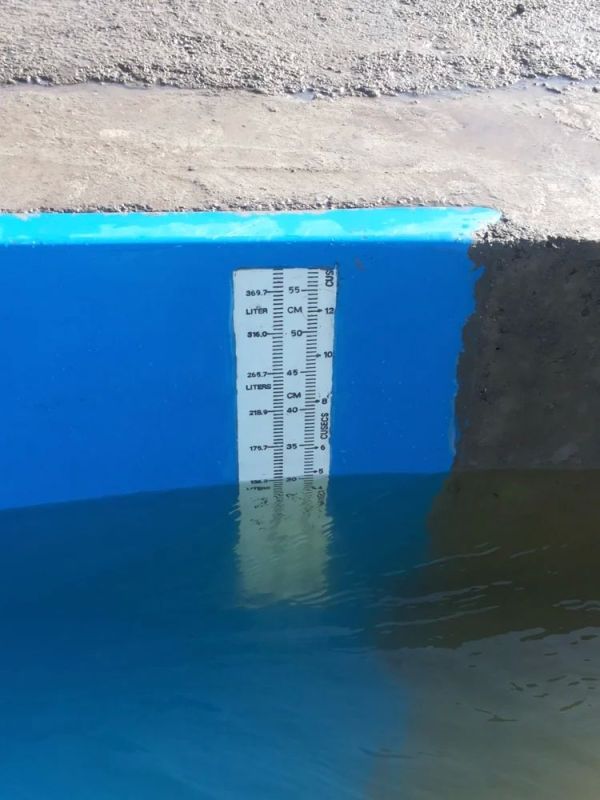

• Engraved guage marking in litre/sec, cusecs and centimeter
• Engraved Dishcarge Table
• Pre fabricated moulded item without any joint

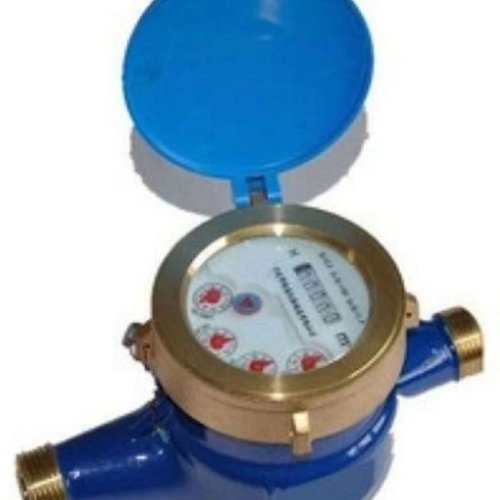

We are recognized as specialist manufacturer of Mechanical Pipe Flow Meters. These come handy in measuring difficult applications for any liquid and deliver the most accurate result at any temperature, in any position. The meter can measure any liquid or water in closed pipes and also in part-full pipes.

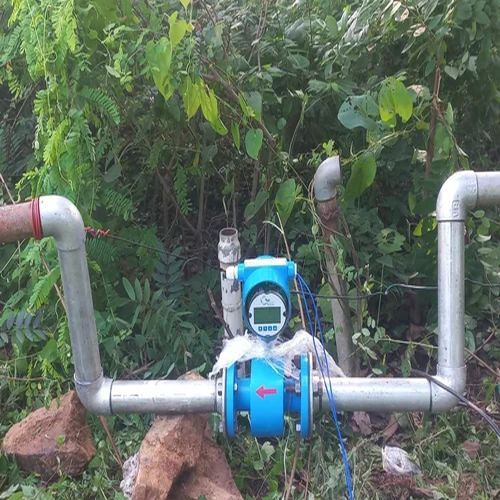

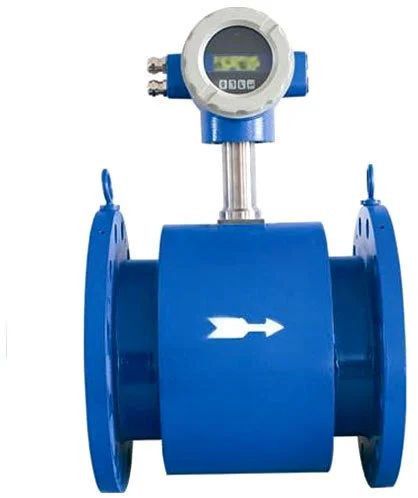

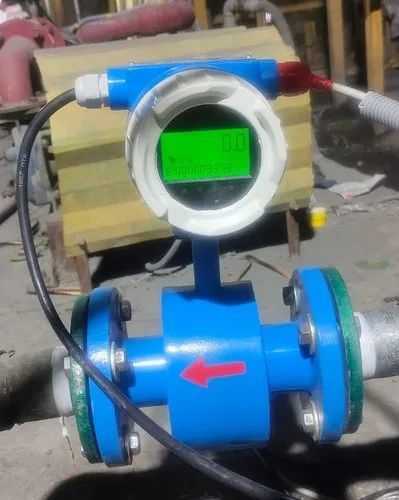

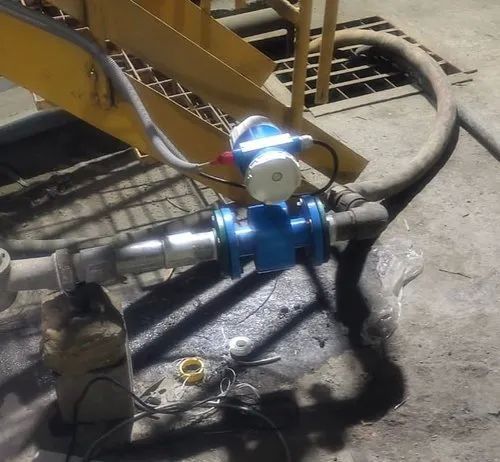

The Electromagnetic Flow Meter accurately measures the flow rate of any conducting liquid or slurry that is flowing in closed pipes. It is obstruction less and hence offers no pressure drop in the process. The absence of moving parts ensures that there is no need for maintenance. The performance of the instrument is not affected by the properties of the material such as corrosiveness, viscosity, density, acidity, and alkalinity. It can measure the flow of liquids, pastes, and slurries in water, wastewater. Suitable for chemical, fertilizer, paper, dairy, sugar, food and beverage industries.

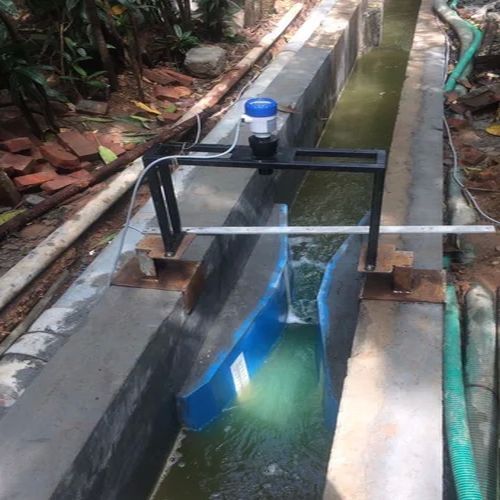

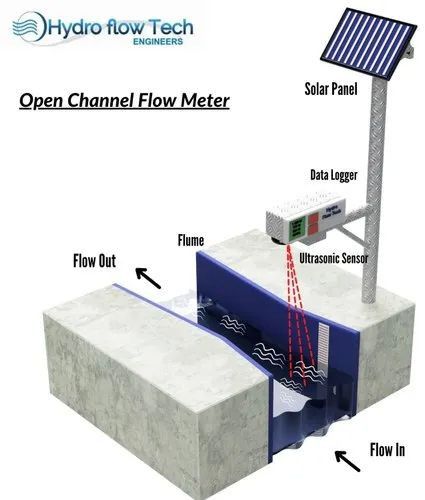

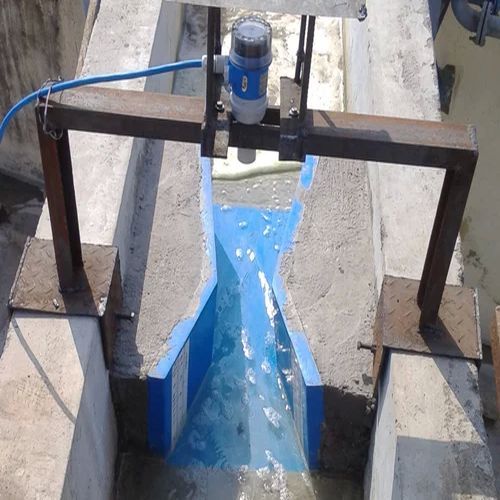

We offer best quality Ultrasonic Open Channel Flow Meter, which deliver accurate non-contact measurement of liquid flow through open channels. The meter has integrated primary devices of superior make such as v-notches, rectangular weirs, cippoletti weirs, parshall flumes etc., for best results. The use of modern technology i.e., the non-contact sensing technology eliminates the need of a stilling pipe, subsequently reducing installation costs, hassles and overall maintenance demands. The device is easily calibrated using software, (no potentiometers) and a set of user benefiting features, makes these ultrasonic open channel flow meters ideal for open channel flow measurements.

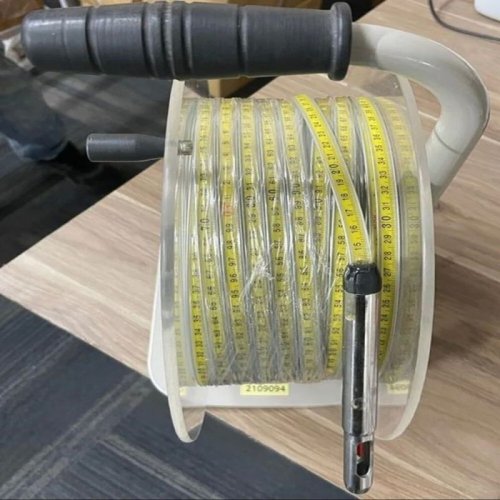

Water level meters are designed and manufactured for well drillers, consultants, hydrogeologists and other professionals who require to measure the most accurate static and drawdown water levels in wells, boreholes, remediation sites and open bodies of water. We designed all of our water level meters to be modular, for easy cleaning and servicing.
