Soil Testing Instruments

This detector is widely used in courtyard garden, greenhouse planting, orchard,home balcony indoor flower and grass planting, etc.2) Excellent Performance: The detector can sensitively analyse soil conditions, quickly andaccurately measure various soil moisture values3) Steel Probe: The detector probe is made of steel material, which has high strength andgood toughness4) Wide Detection Range: The temperature detection range for soil is -20°C to +70°C, -4°F to+158°F, for air is -10°C to +50°C, +14°F to +122°F, can test planting environment very well5) Large Display Screen: This detector equipped with a large display screen, which can displaysoil temperature, air temperature and humidity values clearly at the same time6) Warranty not applicable for this product.

A time-domain reflectometer (TDR) is an electronic instrument used to determine the characteristics of electrical lines by observing reflected pulses.

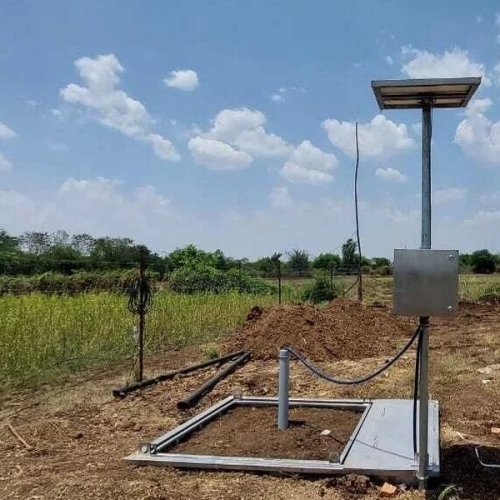

Lysimeters are foremost devices, typically tanks or containers, that define a specific boundary to contain soil water and permit measurement of either the soil- water balance or the volume of water percolating vertically and or its quality.

Lycimeters are standard instruments used in hydrology and water-quality research. In particular, they are used to measure percolation beneath the vegetation root zone and water use through evaporative processes from vegetation.

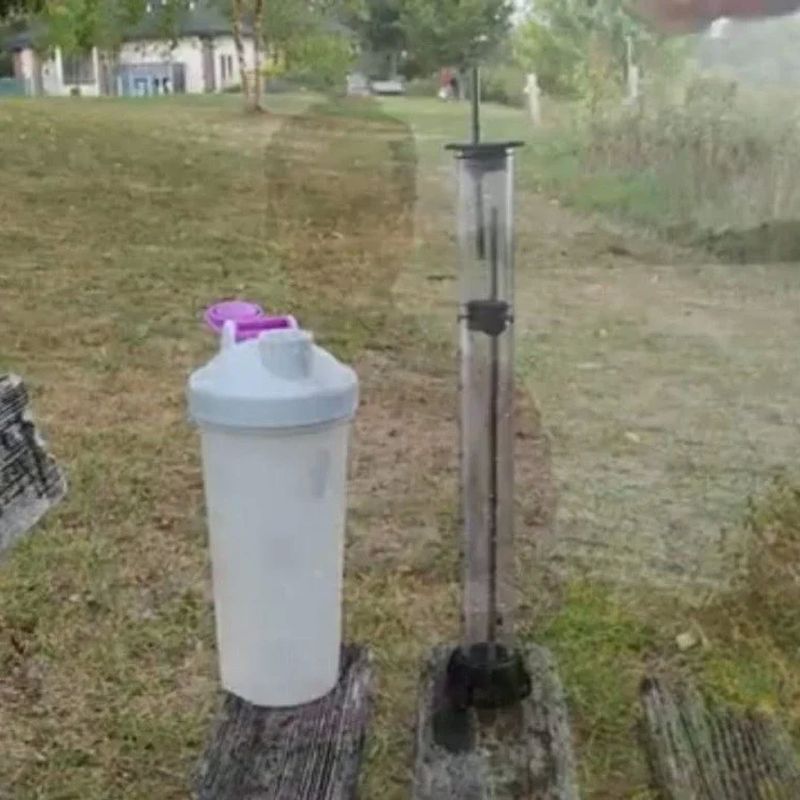

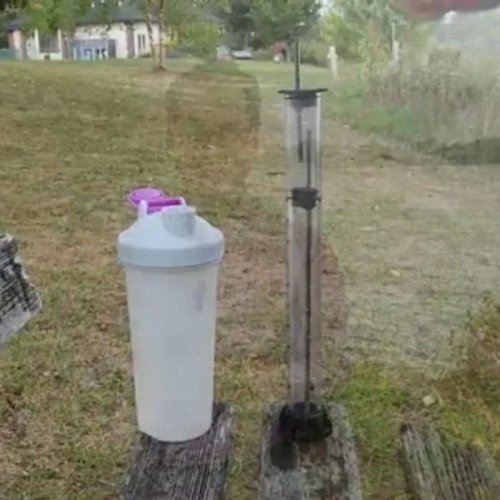

The Mini Disk Infiltrometer is a quick way to test unsaturated hydraulic conductivity and infiltration rates. It's ideal for irrigation system design, classroom instruction, erosion hazard evaluation, burn severity studies, and many other applications. Small, compact, and simple, the Mini Disk Infiltrometer is a true field instrument. It can be tossed into a wooden box with a bottle of water. Adjustable suction & a porous stainless steel contact plate assure a reliable soil unsaturated hydraulic conductivity measurement.

The standard soil moisture recorders consists of a soil moisture sensors,temperature sensor(optional),data logger,solar panels with rechargeable SMF batteries, modem, tripod sand and weatherproof enclosure. Measurements are automatically stored in system memory as per user selectable logging period. It comes with integral solar panel which keeps the batteries charged. The batteries are SMF free. The data file is saved in Microsoft excel.

Features :

• Sensor Inputs:- 7 Soil Moisture Suction Sensors and 1 Soil Temp.Sensor
• Measured Parameters: - Date, Time, Soil Moisture Sensor, Soil Temp.

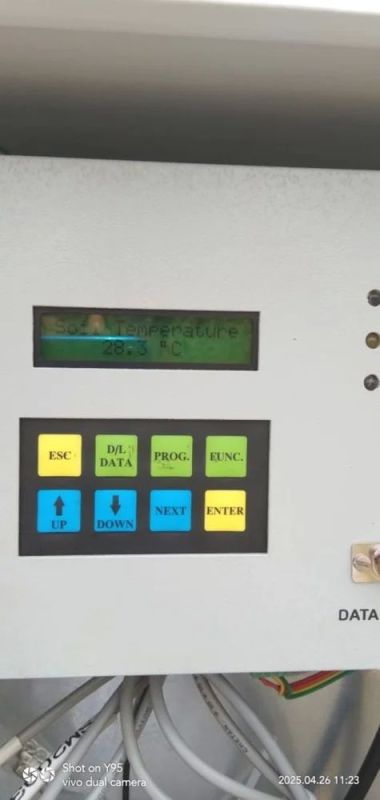

• LCD: - 16x 2 matrix to display the status.
• Membrane keyboard is provided for onsite programming without help of computer.
• Adjustable tripod stand from 6 to 10 ft.
• User programmable logger interval from 1 hr.to 24 hr
• Memory range more than 8000 data sets (Extendable as well with extra cost).
• Rechargeable SMF batteries with integral solar panel which will keep easily keep the batteries charge continuously.
• Data retrieval pocket size data shuttle which will be connected to computer for downloading of the data.
• User friendly application software.
• Operating Temp.: -20 to 70 deg.C/ Operating Humidity: - 0 to 95% non-condensing.
• It comes with weatherproof enclosure.
• The modem is equipped with Ethernet LAN or GPS-GPRS facility with built in RS-232 port and facilitate provision of GSM SIM.
